一个activity就好比一个网页,此文章讲解怎样创建一个activity并且实现跳转!
开发环境:android4.1.1
实验功能:
在第一个Hello World!为标签的activity中显示good,该界面中有一个名为Next的按钮。点击Next按钮进入到第二个activity中去,第二个界面中只有1个Close按钮。当然,据网上有人将要比较安全的实现关闭程序的功能也不是挺简单的,因为android有专门的退出键返回键等。所以该Close按钮暂时没去实现它。
我的第1个activity为HelloworldActivity,第2个activity为NextActivity.
实验说明:
1. 要实现从1个activity跳到另一个activity,这需要通过intent来实现。当然我们需要在Next按钮上绑定一个按钮按下的监听器(这些好像是java中的知识,可我从没学过java,只能用到哪个地方再去学了),一旦该按钮监听到有按键按下,则通过intent将指定的第2个activity触发,这样就完成了本次试验的功能。
2.在工程中,每一个activity都对应一个xml文件,xml文件主要是控制各控件的位置和属性的.
3. asserts目录下可以存放任何文件,res目录下也可以存放任意文件,且res下的文件会在gen目录下的R.java文件中自动生成一个全局id。
4. res目录下的values目下的strings.xml中的控件也是每个控件都在R.jar中对应一个id号。当然layout下的main.xml文件也是一样的。
5. AndroidManifest.xml是整个应用程序的配置文件。
6. android.jar是该程序应用的所有android类的来源。
7. view是android中所有控件的父类。
8. Activity可以理解为人机交互的界面,也可以理解为一个控件的容器。
9. eclipse中用crtl+shift+c注释选中区域,同时也是用ctrl+shift+c取消选中区域,这里的注释为双斜杆//.
如果用/**/来注释的话,就是用ctrl+shift+/来注释选中区域,用ctrl+shift+\来取消选中区域的注释。
10. 用alt+/是增加单词函数等补全功能的提示。
11. ctrl+shift+o可以自动添加eclipse中检测到需要导入的包文件。
12. setText里面不能采用资源引用,资源引用显示文本应该是在xml中的。
13. xml的注释不能出现在属性值代码中,不能出现在标记中。且注释格式为<!--注释内容-->
14. xml语句结束后并不需要结束符号,比如说分号。

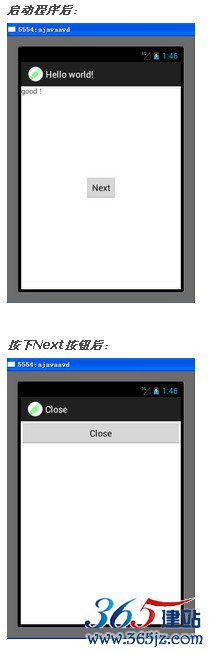

试验结果(在模拟器中运行的):
启动程序后:
实验主要部分代码及注释:
</>code
- HelloworldActivity.java:
- package com.example.helloworld;
- import android.app.Activity;
- import android.content.Intent;
- import android.view.View;//注意view的大小写
- import android.view.View.OnClickListener;
- import android.os.Bundle;
- import android.widget.Button;
- public class HelloworldActivity extends Activity {
- private Button my_button = null;
- @Override
- public void onCreate(Bundle savedInstanceState) {
- super.onCreate(savedInstanceState);
- setContentView(R.layout.activity_helloworld);
- my_button = (Button)findViewById(R.id.my_button);
- my_button.setText( "Next" );
- my_button.setOnClickListener(new MyButtonListener());
- }
- class MyButtonListener implements OnClickListener{
- public void onClick(View v) {
- // TODO Auto-generated method stub
- Intent intent = new Intent();
- intent.setClass(HelloworldActivity.this, NextActivity.class);
- HelloworldActivity.this.startActivity(intent);
- }
- }
- /**
- * 如果下面的语句不要,那么系统运行的时候会直接进入本程序中,而不是先进入主菜单
- * 再进入选择应用程序界面进入本程序
- * 为了方便调试,这里就不进入主菜单界面了*/
- /*@Override
- public boolean onCreateOptionsMenu(Menu menu) {
- getMenuInflater().inflate(R.menu.activity_helloworld, menu);
- return true;
- }*/
- }
- NextActivity.java:
- package com.example.helloworld;
- import android.app.Activity;
- import android.os.Bundle;
- import android.widget.Button;
- public class NextActivity extends Activity{
- private Button my_button2 = null;
- @Override
- protected void onCreate(Bundle savedInstanceState) {
- // TODO Auto-generated method stub
- super.onCreate(savedInstanceState);
- setContentView(R.layout.activity_next);
- my_button2 = (Button)findViewById(R.id.my_button2);
- // my_button2.setText("@string/close"); //setText里面不能采用资源引用
- //资源引用显示文本应该是在xml中的
- my_button2.setText("Close");
- }
- }
</>code
- <!-- android:text="@string/wuwei" -->
- <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
- xmlns:tools="http://schemas.android.com/tools"
- android:layout_width="match_parent"
- android:layout_height="match_parent" >
- <TextView
- android:layout_width="wrap_content"
- android:layout_height="wrap_content"
- android:layout_alignParentLeft="true"
- android:layout_alignParentRight="false"
- android:layout_alignParentTop="true"
- android:layout_centerHorizontal="true"
- android:text="@string/wuwei"
- tools:context=".HelloworldActivity" />
- <Button
- android:layout_width="wrap_content"
- android:layout_height="wrap_content"
- android:id="@+id/my_button"
- android:layout_centerHorizontal="true"
- android:layout_centerVertical="true"
- />
- </RelativeLayout>
- activity_next.xml:
- <?xml version="1.0" encoding="utf-8"?>
- <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
- android:layout_width="match_parent"
- android:layout_height="match_parent"
- android:orientation="vertical" >
- <Button
- android:id="@+id/my_button2"
- android:layout_width="fill_parent"
- android:layout_height="wrap_content"
- />
- </LinearLayout>
AndroidManifest.xml:
</>code
- <manifest xmlns:android="http://schemas.android.com/apk/res/android"
- package="com.example.helloworld"
- android:versionCode="1"
- android:versionName="1.0" >
- <uses-sdk
- android:minSdkVersion="16"
- android:targetSdkVersion="15" />
- <application
- android:icon="@drawable/ic_launcher"
- android:label="@string/app_name"
- android:theme="@style/AppTheme" >
- <activity
- android:name=".HelloworldActivity"
- android:label="@string/hello_world" >
- <intent-filter>
- <action android:name="android.intent.action.MAIN" />
- <category android:name="android.intent.category.LAUNCHER" />
- </intent-filter>
- </activity>
- <activity android:name=".NextActivity" android:label="@string/close">
- </activity>
- </application>
- </manifest>
