基于iscroll.js实现下拉刷新和上拉加载更多效果

文章来源:365jz.com     点击数:388    更新时间:2017-08-11 09:38   参与评论

前一段有个手机端的项目需要用到下拉刷新和上拉加载更多的效果,脑海里第一反映就是微博那种效果,刚开始的理解有些偏差,以为下拉也是追加数据,上拉也是追加数据,后请教同事后发现其实下拉只是刷新最新数据而已,上拉是追加数据。

使用技巧

      1、引用iScroll.js, 在初始化时添加两个事件监听:touchMove、DOMContentLoaded。

      2、实现iScroll插件的onScrollEnd事件, 也就是在这个事件里调用你自己的ajax方法实现数据的刷新和追加。

      3、上拉加载更多请求后台时就相当于分页请求数据,这时候需要在ajax请求时发送pageIndex参数,而初始化加载时需要从后台返回一个pageCount以便前台判断。

      4、最关键的就是实现下拉刷新方法(pullDownAction)和上拉加载更多(pullUpAction)方法。



现在已经不是纯Android独霸天下的时代了,H5嵌入Android的Hybrid混合开发是大势所趋。今天给大家带来的就是移动端中常见的“上拉刷新,下拉加载”特效,这个特效将会基于H5来实现。

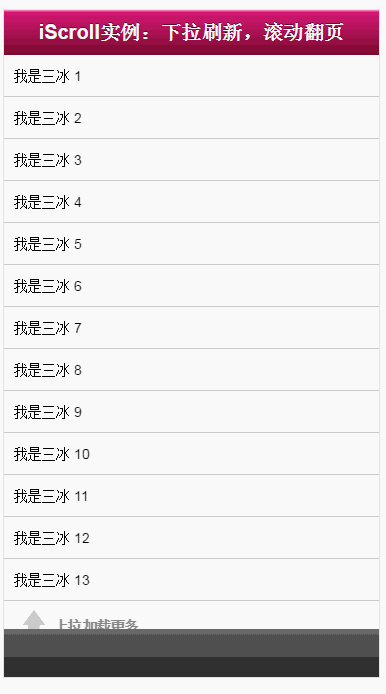

先看下运行效果:

是不是有点小小的‘鸡冻' ,它就是由我们今天要介绍的主人公‘iscroll.js'实现的,接下来我以最最简便的方式教给大家~~

实现步骤

一、准备好iscroll.js库

到官网下载即可:
https://github.com/cubiq/iscroll

二、搭建页面结构

<!DOCTYPE HTML>
<html>
<head>
 <meta http-equiv="Content-Type" content="text/html; charset=utf-8">
 <meta name="viewport" content="width=device-width, initial-scale=1.0, user-scalable=0, minimum-scale=1.0, maximum-scale=1.0">
 <meta name="apple-mobile-web-app-capable" content="yes">
 <meta name="apple-mobile-web-app-status-bar-style" content="black">
 <title>iScroll 实例:下拉刷新,滚动翻页</title>
 <style type="text/CSS" media="all">
  body,ul,li {
   padding:0;
   margin:0;
   border:0;
  }

  body {
   font-size:12px;
   -webkit-user-select:none;
   -webkit-text-size-adjust:none;
   font-family:helvetica;
  }

  #header {
   position:absolute;
   top:0; left:0;
   width:100%;
   height:45px;
   line-height:45px;
   background-image:-webkit-gradient(linear, 0 0, 0 100%, color-stop(0, #fe96c9), color-stop(0.05, #d51875), color-stop(1, #7b0a2e));
   background-image:-moz-linear-gradient(top, #fe96c9, #d51875 5%, #7b0a2e);
   background-image:-o-linear-gradient(top, #fe96c9, #d51875 5%, #7b0a2e);
   padding:0;
   color:#eee;
   font-size:20px;
   text-align:center;
  }

  #header a {
   color:#f3f3f3;
   text-decoration:none;
   font-weight:bold;
   text-shadow:0 -1px 0 rgba(0,0,0,0.5);
  }

  #footer {
   position:absolute;
   bottom:0; left:0;
   width:100%;
   height:48px;
   background-image:-webkit-gradient(linear, 0 0, 0 100%, color-stop(0, #999), color-stop(0.02, #666), color-stop(1, #222));
   background-image:-moz-linear-gradient(top, #999, #666 2%, #222);
   background-image:-o-linear-gradient(top, #999, #666 2%, #222);
   padding:0;
   border-top:1px solid #444;
  }

  #wrapper {
   position:absolute; z-index:1;
   top:45px; bottom:48px; left:0;
   width:100%;
   background:#555;
   overflow:auto;
  }

  #scroller {
   position:relative;
  /* -webkit-touch-callout:none;*/
   -webkit-tap-highlight-color:rgba(0,0,0,0);

   float:left;
   width:100%;
   padding:0;
  }

  #scroller ul {
   position:relative;
   list-style:none;
   padding:0;
   margin:0;
   width:100%;
   text-align:left;
  }

  #scroller li {
   padding:0 10px;
   height:40px;
   line-height:40px;
   border-bottom:1px solid #ccc;
   border-top:1px solid #fff;
   background-color:#fafafa;
   font-size:14px;
  }

  #scroller li > a {
   display:block;
  }

  /**
   *
   * 下拉样式 Pull down styles
   *
   */
  #pullDown, #pullUp {
   background:#fff;
   height:40px;
   line-height:40px;
   padding:5px 10px;
   border-bottom:1px solid #ccc;
   font-weight:bold;
   font-size:14px;
   color:#888;
  }
  #pullDown .pullDownIcon, #pullUp .pullUpIcon {
   display:block; float:left;
   width:40px; height:40px;
   background:url(pull-icon@2x.png) 0 0 no-repeat;
   -webkit-background-size:40px 80px; background-size:40px 80px;
   -webkit-transition-property:-webkit-transform;
   -webkit-transition-duration:250ms;
  }
  #pullDown .pullDownIcon {
   -webkit-transform:rotate(0deg) translateZ(0);
  }
  #pullUp .pullUpIcon {
   -webkit-transform:rotate(-180deg) translateZ(0);
  }


 </style>
</head>
<body>
 <div id="header">
  <a href="../db.html#page2">iScroll实例:下拉刷新,滚动翻页</a>
 </div>

 <div id="wrapper">
  <div id="scroller">

   <div id="pullDown">
    <span class="pullDownIcon"></span><span class="pullDownLabel">下拉刷新...</span>
   </div>

   <ul id="thelist">
    <li>我是三冰 1</li>
    <li>我是三冰 2</li>
    <li>我是三冰 3</li>
    <li>我是三冰 4</li>
    <li>我是三冰 5</li>
    <li>我是三冰 6</li>
    <li>我是三冰 7</li>
    <li>我是三冰 8</li>
    <li>我是三冰 9</li>
    <li>我是三冰 10</li>
    <li>我是三冰 11</li>
    <li>我是三冰 12</li>
    <li>我是三冰 13</li>
   </ul>

   <div id="pullUp">
    <span class="pullUpIcon"></span><span class="pullUpLabel">上拉加载更多...</span>
   </div>

  </div>
 </div>


 <div id="footer"></div>
</body>
</html>

代码非常简单,无需多言,仅仅搭建一个静态结构而已~~

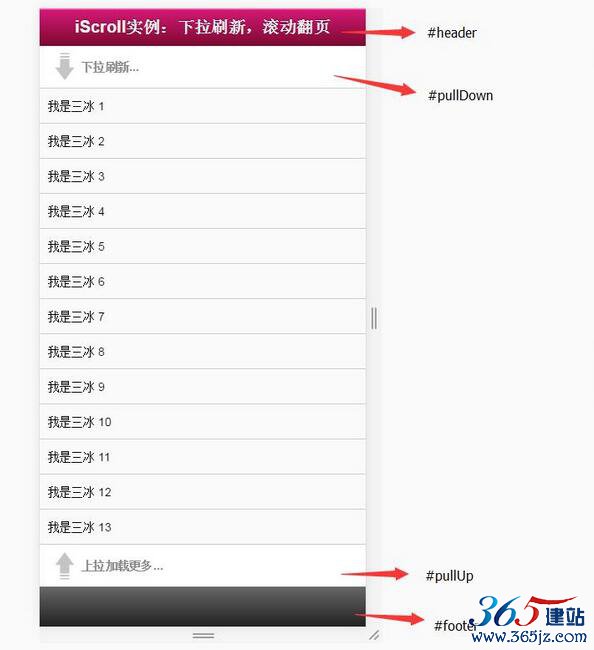

效果如下:

对照这个效果图看上面代码简直太easy,暂时与iscroll没有半毛钱关系,就是纯静态页面,此时你们唯一没有就是下面这个小图标,不用着急,文章最后会给到你的~~

二、完整Js代码

<script type="application/JavaScript" src="iscroll.js"></script>

<script type="text/javascript">

var myScroll,
 pullDownEl, pullDownOffset,
 pullUpEl, pullUpOffset,
 generatedCount = 0;

/**
 * 下拉刷新 (自定义实现此方法)
 * myScroll.refresh();  // 数据加载完成后,调用界面更新方法
 */
function pullDownAction () {
 setTimeout(function () { // <-- Simulate network congestion, remove setTimeout from production!
  var el, li, i;
  el = document.getElementById('thelist');

  for (i=0; i<3; i++) {
   li = document.createElement('li');
   li.innerText = '添加三冰 ' + (++generatedCount);
   el.insertBefore(li, el.childNodes[0]);
  }

  myScroll.refresh();  //数据加载完成后,调用界面更新方法 Remember to refresh when contents are loaded (ie: on ajax completion)
 }, 1000); // <-- Simulate network congestion, remove setTimeout from production!
}

/**
 * 滚动翻页 (自定义实现此方法)
 * myScroll.refresh();  // 数据加载完成后,调用界面更新方法
 */
function pullUpAction () {
 setTimeout(function () { // <-- Simulate network congestion, remove setTimeout from production!
  var el, li, i;
  el = document.getElementById('thelist');

  for (i=0; i<3; i++) {
   li = document.createElement('li');
   li.innerText = '添加三冰 ' + (++generatedCount);
   el.appendChild(li, el.childNodes[0]);
  }

  myScroll.refresh();  // 数据加载完成后,调用界面更新方法 Remember to refresh when contents are loaded (ie: on ajax completion)
 }, 1000); // <-- Simulate network congestion, remove setTimeout from production!
}

/**
 * 初始化iScroll控件
 */
function loaded() {
 pullDownEl = document.getElementById('pullDown');
 pullDownOffset = pullDownEl.offsetHeight;
 pullUpEl = document.getElementById('pullUp');
 pullUpOffset = pullUpEl.offsetHeight;

 myScroll = new iScroll('wrapper', {
  scrollbarClass: 'myScrollbar', /* 重要样式 */
  useTransition: false, /* 此属性不知用意,本人从true改为false */
  topOffset: pullDownOffset,
  onRefresh: function () {
   if (pullDownEl.className.match('loading')) {
    pullDownEl.className = '';
    pullDownEl.querySelector('.pullDownLabel').innerHTML = '下拉刷新...';
   } else if (pullUpEl.className.match('loading')) {
    pullUpEl.className = '';
    pullUpEl.querySelector('.pullUpLabel').innerHTML = '上拉加载更多...';
   }
  },
  onScrollMove: function () {
   if (this.y > 5 && !pullDownEl.className.match('flip')) {
    pullDownEl.className = 'flip';
    pullDownEl.querySelector('.pullDownLabel').innerHTML = '松手开始更新...';
    this.minScrollY = 0;
   } else if (this.y < 5 && pullDownEl.className.match('flip')) {
    pullDownEl.className = '';
    pullDownEl.querySelector('.pullDownLabel').innerHTML = '下拉刷新...';
    this.minScrollY = -pullDownOffset;
   } else if (this.y < (this.maxScrollY - 5) && !pullUpEl.className.match('flip')) {
    pullUpEl.className = 'flip';
    pullUpEl.querySelector('.pullUpLabel').innerHTML = '松手开始更新...';
    this.maxScrollY = this.maxScrollY;
   } else if (this.y > (this.maxScrollY + 5) && pullUpEl.className.match('flip')) {
    pullUpEl.className = '';
    pullUpEl.querySelector('.pullUpLabel').innerHTML = '上拉加载更多...';
    this.maxScrollY = pullUpOffset;
   }
  },
  onScrollEnd: function () {
   if (pullDownEl.className.match('flip')) {
    pullDownEl.className = 'loading';
    pullDownEl.querySelector('.pullDownLabel').innerHTML = '加载中...';
    pullDownAction(); // Execute custom function (ajax call?)
   } else if (pullUpEl.className.match('flip')) {
    pullUpEl.className = 'loading';
    pullUpEl.querySelector('.pullUpLabel').innerHTML = '加载中...';
    pullUpAction(); // Execute custom function (ajax call?)
   }
  }
 });

 setTimeout(function () { document.getElementById('wrapper').style.left = '0'; }, 800);
}

//初始化绑定iScroll控件
document.addEventListener('touchmove', function (e) { e.preventDefault(); }, false);
document.addEventListener('DOMContentLoaded', loaded, false);

</script>

这么多代码看啊,不用着急,挑几个重点给你说说:

1)onRefresh函数是指页面刷新或调用refresh()函数会触发此函数,里面代码中主要做【一些重置样式和文字】的处理。

2)onScrollMove函数是指拖拽页面,不松手的时候会触发此函数,里面代码中主要做【箭头有个旋转效果和松手提示】的处理。

3)onScrollEnd函数是指松开手,停止拖拽的时候会触发的函数,里面代码中主要做【刷新数据和一些加载动画效果】的处理。

4)topOffset属性主要是可以隐藏一个高度,正好把下拉刷新给隐藏掉

5)函数pullDownAction和pullUpAction中,我是自己用createElement函数造数据,但是真实开发中,这里可以换成Ajax请求服务器数据即可

看看现在的效果如何:

现在数据什么的都能刷新了,只差那么一点点,如果下拉和上拉的时候,加载的小图标有个动画效果那就超级“完美”了:

既然是要来点动画效果,肯定是用最新的CSS3技术呀,废话不多说,直接贴完整代码了:

<!DOCTYPE html>
<html>
<head>
 <meta http-equiv="Content-Type" content="text/html; charset=utf-8">
 <meta name="viewport" content="width=device-width, initial-scale=1.0, user-scalable=0, minimum-scale=1.0, maximum-scale=1.0">
 <meta name="apple-mobile-web-app-capable" content="yes">
 <meta name="apple-mobile-web-app-status-bar-style" content="black">
 <title>iScroll 实例:下拉刷新,滚动翻页</title>
 <style type="text/css" media="all">
  body,ul,li {
   padding:0;
   margin:0;
   border:0;
  }

  body {
   font-size:12px;
   -webkit-user-select:none;
   -webkit-text-size-adjust:none;
   font-family:helvetica;
  }

  #header {
   position:absolute;
   top:0; left:0;
   width:100%;
   height:45px;
   line-height:45px;
   background-image:-webkit-gradient(linear, 0 0, 0 100%, color-stop(0, #fe96c9), color-stop(0.05, #d51875), color-stop(1, #7b0a2e));
   background-image:-moz-linear-gradient(top, #fe96c9, #d51875 5%, #7b0a2e);
   background-image:-o-linear-gradient(top, #fe96c9, #d51875 5%, #7b0a2e);
   padding:0;
   color:#eee;
   font-size:20px;
   text-align:center;
  }

  #header a {
   color:#f3f3f3;
   text-decoration:none;
   font-weight:bold;
   text-shadow:0 -1px 0 rgba(0,0,0,0.5);
  }

  #footer {
   position:absolute;
   bottom:0; left:0;
   width:100%;
   height:48px;
   background-image:-webkit-gradient(linear, 0 0, 0 100%, color-stop(0, #999), color-stop(0.02, #666), color-stop(1, #222));
   background-image:-moz-linear-gradient(top, #999, #666 2%, #222);
   background-image:-o-linear-gradient(top, #999, #666 2%, #222);
   padding:0;
   border-top:1px solid #444;
  }

  #wrapper {
   position:absolute; z-index:1;
   top:45px; bottom:48px; left:0;
   width:100%;
   background:#555;
   overflow:auto;
  }

  #scroller {
   position:relative;
  /* -webkit-touch-callout:none;*/
   -webkit-tap-highlight-color:rgba(0,0,0,0);

   float:left;
   width:100%;
   padding:0;
  }

  #scroller ul {
   position:relative;
   list-style:none;
   padding:0;
   margin:0;
   width:100%;
   text-align:left;
  }

  #scroller li {
   padding:0 10px;
   height:40px;
   line-height:40px;
   border-bottom:1px solid #ccc;
   border-top:1px solid #fff;
   background-color:#fafafa;
   font-size:14px;
  }

  #scroller li > a {
   display:block;
  }

  /**
   *
   * 下拉样式 Pull down styles
   *
   */
  #pullDown, #pullUp {
   background:#fff;
   height:40px;
   line-height:40px;
   padding:5px 10px;
   border-bottom:1px solid #ccc;
   font-weight:bold;
   font-size:14px;
   color:#888;
  }
  #pullDown .pullDownIcon, #pullUp .pullUpIcon {
   display:block; float:left;
   width:40px; height:40px;
   background:url(pull-icon@2x.png) 0 0 no-repeat;
   -webkit-background-size:40px 80px; background-size:40px 80px;
   -webkit-transition-property:-webkit-transform;
   -webkit-transition-duration:250ms;
  }
  #pullDown .pullDownIcon {
   -webkit-transform:rotate(0deg) translateZ(0);
  }
  #pullUp .pullUpIcon {
   -webkit-transform:rotate(-180deg) translateZ(0);
  }


  /**
   * 动画效果css3代码
   */
  #pullDown.flip .pullDownIcon {
   -webkit-transform:rotate(-180deg) translateZ(0);
  }

  #pullUp.flip .pullUpIcon {
   -webkit-transform:rotate(0deg) translateZ(0);
  }

  #pullDown.loading .pullDownIcon, #pullUp.loading .pullUpIcon {
   background-position:0 100%;
   -webkit-transform:rotate(0deg) translateZ(0);
   -webkit-transition-duration:0ms;

   -webkit-animation-name:loading;
   -webkit-animation-duration:2s;
   -webkit-animation-iteration-count:infinite;
   -webkit-animation-timing-function:linear;
  }

  @-webkit-keyframes loading {
   from { -webkit-transform:rotate(0deg) translateZ(0); }
   to { -webkit-transform:rotate(360deg) translateZ(0); }
  }

 </style>
</head>
<body>
 <div id="header">
  <a href="../db.html#page2">iScroll实例:下拉刷新,滚动翻页</a>
 </div>

 <div id="wrapper">
  <div id="scroller">

   <div id="pullDown">
    <span class="pullDownIcon"></span><span class="pullDownLabel">下拉刷新...</span>
   </div>

   <ul id="thelist">
    <li>我是三冰 1</li>
    <li>我是三冰 2</li>
    <li>我是三冰 3</li>
    <li>我是三冰 4</li>
    <li>我是三冰 5</li>
    <li>我是三冰 6</li>
    <li>我是三冰 7</li>
    <li>我是三冰 8</li>
    <li>我是三冰 9</li>
    <li>我是三冰 10</li>
    <li>我是三冰 11</li>
    <li>我是三冰 12</li>
    <li>我是三冰 13</li>
   </ul>

   <div id="pullUp">
    <span class="pullUpIcon"></span><span class="pullUpLabel">上拉加载更多...</span>
   </div>

  </div>
 </div>


 <div id="footer"></div>

<script type="application/javascript" src="iscroll.js"></script>

<script type="text/javascript">

var myScroll,
 pullDownEl, pullDownOffset,
 pullUpEl, pullUpOffset,
 generatedCount = 0;

/**
 * 下拉刷新 (自定义实现此方法)
 * myScroll.refresh();  // 数据加载完成后,调用界面更新方法
 */
function pullDownAction () {
 setTimeout(function () { // <-- Simulate network congestion, remove setTimeout from production!
  var el, li, i;
  el = document.getElementById('thelist');

  for (i=0; i<3; i++) {
   li = document.createElement('li');
   li.innerText = '添加三冰 ' + (++generatedCount);
   el.insertBefore(li, el.childNodes[0]);
  }

  myScroll.refresh();  //数据加载完成后,调用界面更新方法 Remember to refresh when contents are loaded (ie: on ajax completion)
 }, 1000); // <-- Simulate network congestion, remove setTimeout from production!
}

/**
 * 滚动翻页 (自定义实现此方法)
 * myScroll.refresh();  // 数据加载完成后,调用界面更新方法
 */
function pullUpAction () {
 setTimeout(function () { // <-- Simulate network congestion, remove setTimeout from production!
  var el, li, i;
  el = document.getElementById('thelist');

  for (i=0; i<3; i++) {
   li = document.createElement('li');
   li.innerText = '添加三冰 ' + (++generatedCount);
   el.appendChild(li, el.childNodes[0]);
  }

  myScroll.refresh();  // 数据加载完成后,调用界面更新方法 Remember to refresh when contents are loaded (ie: on ajax completion)
 }, 1000); // <-- Simulate network congestion, remove setTimeout from production!
}

/**
 * 初始化iScroll控件
 */
function loaded() {
 pullDownEl = document.getElementById('pullDown');
 pullDownOffset = pullDownEl.offsetHeight;
 pullUpEl = document.getElementById('pullUp');
 pullUpOffset = pullUpEl.offsetHeight;

 myScroll = new iScroll('wrapper', {
  scrollbarClass: 'myScrollbar', /* 重要样式 */
  useTransition: false, /* 此属性不知用意,本人从true改为false */
  topOffset: pullDownOffset,
  onRefresh: function () {
   if (pullDownEl.className.match('loading')) {
    pullDownEl.className = '';
    pullDownEl.querySelector('.pullDownLabel').innerHTML = '下拉刷新...';
   } else if (pullUpEl.className.match('loading')) {
    pullUpEl.className = '';
    pullUpEl.querySelector('.pullUpLabel').innerHTML = '上拉加载更多...';
   }
  },
  onScrollMove: function () {
   if (this.y > 5 && !pullDownEl.className.match('flip')) {
    pullDownEl.className = 'flip';
    pullDownEl.querySelector('.pullDownLabel').innerHTML = '松手开始更新...';
    this.minScrollY = 0;
   } else if (this.y < 5 && pullDownEl.className.match('flip')) {
    pullDownEl.className = '';
    pullDownEl.querySelector('.pullDownLabel').innerHTML = '下拉刷新...';
    this.minScrollY = -pullDownOffset;
   } else if (this.y < (this.maxScrollY - 5) && !pullUpEl.className.match('flip')) {
    pullUpEl.className = 'flip';
    pullUpEl.querySelector('.pullUpLabel').innerHTML = '松手开始更新...';
    this.maxScrollY = this.maxScrollY;
   } else if (this.y > (this.maxScrollY + 5) && pullUpEl.className.match('flip')) {
    pullUpEl.className = '';
    pullUpEl.querySelector('.pullUpLabel').innerHTML = '上拉加载更多...';
    this.maxScrollY = pullUpOffset;
   }
  },
  onScrollEnd: function () {
   if (pullDownEl.className.match('flip')) {
    pullDownEl.className = 'loading';
    pullDownEl.querySelector('.pullDownLabel').innerHTML = '加载中...';
    pullDownAction(); // Execute custom function (ajax call?)
   } else if (pullUpEl.className.match('flip')) {
    pullUpEl.className = 'loading';
    pullUpEl.querySelector('.pullUpLabel').innerHTML = '加载中...';
    pullUpAction(); // Execute custom function (ajax call?)
   }
  }
 });

 setTimeout(function () { document.getElementById('wrapper').style.left = '0'; }, 800);
}

//初始化绑定iScroll控件
document.addEventListener('touchmove', function (e) { e.preventDefault(); }, false);
document.addEventListener('DOMContentLoaded', loaded, false);

</script>
</body>
</html>

以上就是本文的全部内容,希望对大家的学习有所帮助,也希望大家多多支持脚本之家。

如对本文有疑问,请提交到交流论坛,广大热心网友会为你解答!! 点击进入论坛


发表评论 (388人查看0条评论)
请自觉遵守互联网相关的政策法规,严禁发布色情、暴力、反动的言论。
用户名: 验证码: 点击我更换图片
最新评论
------分隔线----------------------------
